Tên sản phẩm: MÁY SẤY KHÍ DESICCANT INGERSOLL RAND (D500IB TO D14900IB
Model: MÁY SẤY KHÍ DESICCANT INGERSOLL RAND (D500IB TO D14900IB

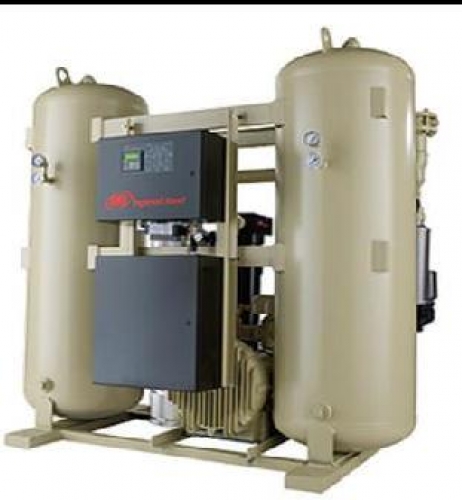

MÁY SẤY KHÍ DESICCANT INGERSOLL RAND (D500IB TO D14900IB

Đánh giá: 1/5 sao (trong tổng số 4 bình chọn)
Bình chọn của bạn:

Thông tin chi tiết Hướng dẫn sử dụng Nhận xét

Inlet (High Efficiency) and outlet (General Purpose) heavy duty filters supplied with all dryers

Control panel display: Tower status (drying & regeneration)/Operating & Purge Times/Operation Hours

Alarm: High Dew Point, time of alarm, history of last 20 alarms, High Outlet Temperature, Blower failure

Energy Management System available as std feature to reduce operating costs by measuring the outlet dewpoint and adjusting the cycle time accordingly to save energy

Operating Limitations:

Ambient : Min 1ºC / Max 50ºC

Air inlet temperature : Max 50º C

Minimum capacity = 23% of dryer maximum capacity at reference conditions

		Capacity		Air In/Out	Max Op		Dimensions				Std Power	CPN
Model				Connection	Pressure	Length		Width	Height	Weight	Supply	With
		m³/hr	m³/min	BSPT (in)	bar g	mm		mm	mm	kg	V/Ph/Hz	EMS
Model: -40ºC	PDP
D500IB		500.00	8.33	1.5 "	5 – 10	1340		950	1730	670	400/3/50	23492903
D900IB		900.00	15.00	2.0 "	5 – 10	1440		980	2100	958	400/3/50	23492911
D1400IB		1,400.00	23.33	3.0 "	5 – 10	1630		1470	2235	1450	400/3/50	23492929
D1800IB		1,800.00	30.00	3.0 "	5 – 10	1980		1500	2040	1768	400/3/50	23492937
D2200IB		2,200.00	36.67	3.0 "	5 – 10	1980		1500	2040	1855	400/3/50	23492945
D2600IB		2,600.00	43.33	3.0 "	5 – 10	2490		1650	2300	2501	400/3/50	23492952
D3200IB		3,200.00	53.33	DN125	5 – 10	2490		1750	2340	2772	400/3/50	23492960
D3900IB		3,900.00	65.00	DN125	5 – 10	2490		1680	2340	3134	400/3/50	23492978
D5300IB		5,300.00	88.33	DN150	5 – 10	2340		3050	1980	4413	400/3/50	23492986
D7000IB		7,000.00	116.67	DN150	5 – 10	3200		2100	2340	5518	400/3/50	23492994
D9300IB		9,300.00	155.00	DN150	5 – 10	3510		2230	2450	6067	400/3/50	23493000
D10600IB		10,600.00	176.67	DN150	5 – 10	3810		2370	2610	7257	400/3/50	23493026
D14900IB		14,900.00	248.33	DN200	5 – 10	4270		2510	2670	9026	400/3/50	23493034
Performance based on:
Ambient Pressure equal to 1 bar a					Dryer Inlet Pressure equal to 7 bar g
Ambient Temperature equal to 25°C					Dryer Inlet Temperature equal to 35°C
Dryer Inlet Air Relative Humidity 100%
