Tên sản phẩm: Servo motor LS APM-SE16D
Model: Servo motor LS APM-SE16D
Model: Servo motor LS APM-SE16D

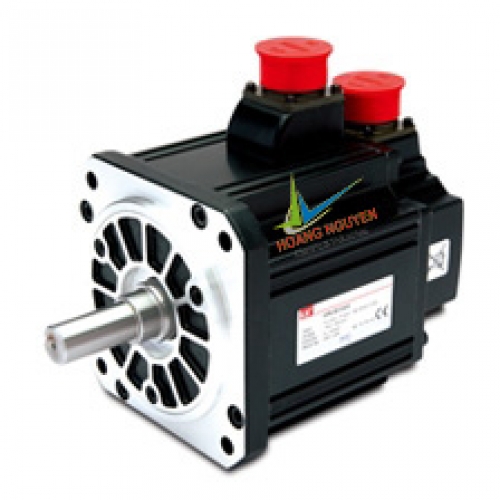

Servo motor LS APM-SE16D
Đánh giá: 0/5 sao (trong tổng số 1 bình chọn)
Bình chọn của bạn:
Bình chọn của bạn:
- Flange Size: 130
- Rated power: 1.6kW
- Rated/Max torque: 7.63/22.92[N.m]
- Rated/Max rpm: 2000/3000[rpm]
- Speed, Position transducer: 3000[P/R]
- Weight: 9.68 kg
Servo Motor"s Characteristics
| Servo Motor Model (APM-□□□□□) | SE16D | |
|---|---|---|
| Servo Drive Model (APD-□□□□□) | VS15/VN15 | |
| Flange Size(□) | □130 | |
| Rated Power | ㎾ | 1.6 |
| Rated Torque | N · m | 7.63 |
| ㎏f · cm | 77.9 | |
| Max.Instantaneous torque | N · m | 22.92 |
| ㎏f · cm | 233.8 | |
| Rated rpm | r/min | 2,000 |
| Max. rpm | r/min | 3,000 |
| Monent of inertia | ㎏ · ㎡ ×10-⁴ | 17.339 |
| gf · cm · s² | 17.685 | |
| Allowable Load Inertia Ratio | 10times of motor inertia | |
| Rated Power Rate | ㎾/s | 33.63 |
| Speed, Potion Transducer | Standard (Note) | Incremental 3000 [P/R] |
| Option | Absolute, 11/13bit Manchester communication | |
| Specification & Features | Protective Method | Totally enclosed, Non ventilated IP65(Excluding the shaft-through section and connectors) |
| Insulation rate | B | |
| Ambient Temp. | Operating Temp. : 0~40[°C] Storage Temp. : -20~60[°C] | |
| Ambient Humidity | Lower than 90[%] (Avoid condensation) | |
| Atmosphere | Avoid direct sunlight, no corrosive gas, inflammable gas, oil mist, or dust | |
| E/V | Elevation/Vibration 49[m/s2](5G) | |
| Weight | ㎏ | 9.68 |
Note : Standard Encoder specification is 5[V] Line Driver.
