Thông tin sản phẩm

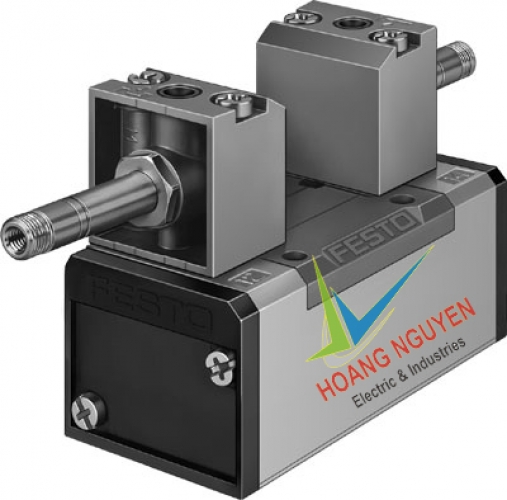

Tên sản phẩm: Standard valves to ISO 5599-1 Valves Festo
Model: JMEBDH-5/2-D-1-ZSR-C Series

Electrically and pneumatically actuated directional control valves.

Đánh giá: 0/5 sao (trong tổng số 5 bình chọn)
Bình chọn của bạn:

Thông tin chi tiết Hướng dẫn sử dụng Nhận xét

Standard valves to ISO 5599-1 Valves Festo

1. Mô Tả

Van Festo tiêu chuẩn ISO 5599-1

Kết nối G1/4, ISO1; G3/8, ISO2; G1/2, ISO3; G3/4, ISO4
Lưu lượng 1200 ... 6000 l/min
Sub-base valve
- Tác động khí
- Tác động điện, trợ động

Manifold sub-bases.

Danh sách mã valves Festo ISO 5599-1 Hoàng Nguyên cung cấp:

Part No	Order Code	Valve function	Type of actuation
184496	JMEBDH-5/2-D-1-ZSR-C	5/2 bistable-dominant	electrical
184503	JMEBDH-5/2-D-2-ZSR-C	5/2 bistable	electrical
184495	JMEBH-5/2-D-1-ZSR-C	5/2 bistable	electrical
184502	JMEBH-5/2-D-2-ZSR-C	5/2 bistable	electrical
159690	JMN1H-5/2-D-1-C	5/2 bistable	electrical
159689	JMN1H-5/2-D-1-S-C	5/2 bistable	electrical
159702	JMN1H-5/2-D-2-C	5/2 bistable	electrical
159701	JMN1H-5/2-D-2-S-C	5/2 bistable	electrical
184493	MEBH-5/2-D-1-ZSR-C	5/2 monostable	electrical
184494	MEBH-5/2-D-1-ZSR-FR-C	5/2 monostable	electrical
184500	MEBH-5/2-D-2-ZSR-C	5/2 monostable	electrical
184501	MEBH-5/2-D-2-ZSR-FR-C	5/2 monostable	electrical
184499	MEBH-5/3B-D-1-ZSR-C	5/3 pressurised	electrical
184506	MEBH-5/3B-D-2-ZSR-C	5/3 pressurised	electrical
184497	MEBH-5/3E-D-1-ZSR-C	5/3 exhausted	electrical
184504	MEBH-5/3E-D-2-ZSR-C	5/3 exhausted	electrical
184498	MEBH-5/3G-D-1-ZSR-C	5/3 closed	electrical
184505	MEBH-5/3G-D-2-ZSR-C	5/3 closed	electrical
159688	MN1H-5/2-D-1-C	5/2 monostable	electrical
159687	MN1H-5/2-D-1-FR-C	5/2 monostable	electrical
159716	MN1H-5/2-D-1-FR-S-C	5/2 monostable	electrical
159686	MN1H-5/2-D-1-S-C	5/2 monostable	electrical
159700	MN1H-5/2-D-2-C	5/2 monostable	electrical
159699	MN1H-5/2-D-2-FR-C	5/2 monostable	electrical
159718	MN1H-5/2-D-2-FR-S-C	5/2 monostable	electrical
159698	MN1H-5/2-D-2-S-C	5/2 monostable	electrical
159685	MN1H-5/3B-D-1-C	5/3 pressurised	electrical
159697	MN1H-5/3B-D-2-C	5/3 pressurised	electrical
159683	MN1H-5/3E-D-1-C	5/3 exhausted	electrical
159682	MN1H-5/3E-D-1-S-C	5/3 exhausted	electrical
159695	MN1H-5/3E-D-2-C	5/3 exhausted	electrical
159694	MN1H-5/3E-D-2-S-C	5/3 exhausted	electrical
159681	MN1H-5/3G-D-1-C	5/3 closed	electrical
159680	MN1H-5/3G-D-1-S-C	5/3 closed	electrical
159693	MN1H-5/3G-D-2-C	5/3 closed	electrical
159692	MN1H-5/3G-D-2-S-C	5/3 closed	electrical
12462	J-5/2-3/4-D-4	5/2 bistable	pneumatic
151007	J-5/2-D-1-C	5/2 bistable	pneumatic
536013	J-5/2-D-1-C-EX	5/2 bistable	pneumatic
151846	J-5/2-D-2-C	5/2 bistable	pneumatic
536014	J-5/2-D-2-C-EX	5/2 bistable	pneumatic
151865	J-5/2-D-3-C	5/2 bistable	pneumatic
536015	J-5/2-D-3-C-EX	5/2 bistable	pneumatic
151008	JD-5/2-D-1-C	5/2 bistable-dominant	pneumatic
536016	JD-5/2-D-1-C-EX	5/2 bistable-dominant	pneumatic
151847	JD-5/2-D-2-C	5/2 bistable-dominant	pneumatic
536017	JD-5/2-D-2-C-EX	5/2 bistable-dominant	pneumatic
151866	JD-5/2-D-3-C	5/2 bistable-dominant	pneumatic
536018	JD-5/2-D-3-C-EX	5/2 bistable-dominant	pneumatic
539079	JMDDH-5/2-D-1-M12-C	5/2 bistable-dominant	electrical
540808	JMDDH-5/2-D-1-M12D-C	5/2 bistable-dominant	electrical
539077	JMDDH-5/2-D-2-M12-C	5/2 bistable-dominant	electrical
540817	JMDDH-5/2-D-2-M12D-C	5/2 bistable-dominant	electrical
539081	JMDDH-5/2-D-3-M12-C	5/2 bistable-dominant	electrical
540824	JMDDH-5/2-D-3-M12D-C	5/2 bistable-dominant	electrical
14545	JMDH-5/2-3/4-D-4	5/2 bistable-dominant	electrical
12458	JMDH-5/2-3/4-D-4-24DC	5/2 bistable-dominant	electrical
532687	JMDH-5/2-D-1-M12-C	5/2 bistable	electrical
540809	JMDH-5/2-D-1-M12D-C	5/2 bistable	electrical
533013	JMDH-5/2-D-2-M12-C	5/2 bistable	electrical
540818	JMDH-5/2-D-2-M12D-C	5/2 bistable	electrical
533015	JMDH-5/2-D-3-M12-C	5/2 bistable	electrical
540825	JMDH-5/2-D-3-M12D-C	5/2 bistable	electrical
184510	JMEBDH-5/2-D-3-ZSR-C	5/2 bistable-dominant	electrical
184509	JMEBH-5/2-D-3-ZSR-C	5/2 bistable	electrical
151019	JMFDH-5/2-D-1-C	5/2 bistable-dominant	electrical
536071	JMFDH-5/2-D-1-C-EX	5/2 bistable-dominant	electrical
151853	JMFDH-5/2-D-2-C	5/2 bistable-dominant	electrical
536072	JMFDH-5/2-D-2-C-EX	5/2 bistable-dominant	electrical
151872	JMFDH-5/2-D-3-C	5/2 bistable-dominant	electrical
536073	JMFDH-5/2-D-3-C-EX	5/2 bistable-dominant	electrical
150980	JMFH-5/2-D-1-C	5/2 bistable	electrical
535963	JMFH-5/2-D-1-C-EX	5/2 bistable	electrical
152563	JMFH-5/2-D-1-S-C	5/2 bistable	electrical
535966	JMFH-5/2-D-1-S-C-EX	5/2 bistable	electrical
151852	JMFH-5/2-D-2-C	5/2 bistable	electrical
535964	JMFH-5/2-D-2-C-EX	5/2 bistable	electrical
151023	JMFH-5/2-D-2-S-C	5/2 bistable	electrical
535967	JMFH-5/2-D-2-S-C-EX	5/2 bistable	electrical
151871	JMFH-5/2-D-3-C	5/2 bistable	electrical
535965	JMFH-5/2-D-3-C-EX	5/2 bistable	electrical
151033	JMFH-5/2-D-3-S-C	5/2 bistable	electrical
535968	JMFH-5/2-D-3-S-C-EX	5/2 bistable	electrical
159691	JMN1DH-5/2-D-1-C	5/2 bistable-dominant	electrical
159717	JMN1DH-5/2-D-1-S-C	5/2 bistable-dominant	electrical
159703	JMN1DH-5/2-D-2-C	5/2 bistable-dominant	electrical
159719	JMN1DH-5/2-D-2-S-C	5/2 bistable-dominant	electrical
159715	JMN1DH-5/2-D-3-C	5/2 bistable-dominant	electrical
160897	JMN1DH-5/2-D-3-S-C	5/2 bistable-dominant	electrical
159714	JMN1H-5/2-D-3-C	5/2 bistable	electrical
159713	JMN1H-5/2-D-3-S-C	5/2 bistable	electrical
14544	MDH-5/2-3/4-D-4	5/2 monostable	electrical
12457	MDH-5/2-3/4-D-4-24DC	5/2 monostable	electrical
533010	MDH-5/2-D-1-FR-M12-C	5/2 monostable	electrical
540804	MDH-5/2-D-1-FR-M12D-C	5/2 monostable	electrical
197125	MDH-5/2-D-1-M12-C	5/2 monostable	electrical
540803	MDH-5/2-D-1-M12D-C	5/2 monostable	electrical
533761	MDH-5/2-D-1-S-FR-M12-C	5/2 monostable	electrical
540811	MDH-5/2-D-1-S-FR-M12D-C	5/2 monostable	electrical
533332	MDH-5/2-D-1-S-M12-C	5/2 monostable	electrical
540810	MDH-5/2-D-1-S-M12D-C	5/2 monostable	electrical
533011	MDH-5/2-D-2-FR-M12-C	5/2 monostable	electrical
540813	MDH-5/2-D-2-FR-M12D-C	5/2 monostable	electrical
533008	MDH-5/2-D-2-M12-C	5/2 monostable	electrical
540812	MDH-5/2-D-2-M12D-C	5/2 monostable	electrical
533012	MDH-5/2-D-3-FR-M12-C	5/2 monostable	electrical
540820	MDH-5/2-D-3-FR-M12D-C	5/2 monostable	electrical
533009	MDH-5/2-D-3-M12-C	5/2 monostable	electrical
540819	MDH-5/2-D-3-M12D-C	5/2 monostable	electrical
533005	MDH-5/3B-D-1-M12-C	5/3 pressurised	electrical
540807	MDH-5/3B-D-1-M12D-C	5/3 pressurised	electrical
533006	MDH-5/3B-D-2-M12-C	5/3 pressurised	electrical
540816	MDH-5/3B-D-2-M12D-C	5/3 pressurised	electrical
533007	MDH-5/3B-D-3-M12-C	5/3 pressurised	electrical
540823	MDH-5/3B-D-3-M12D-C	5/3 pressurised	electrical
14547	MDH-5/3E-3/4-D-4	5/3 exhausted	electrical
12460	MDH-5/3E-3/4-D-4-24DC	5/3 exhausted	electrical
197126	MDH-5/3E-D-1-M12-C	5/3 exhausted	electrical
540805	MDH-5/3E-D-1-M12D-C	5/3 exhausted	electrical
533016	MDH-5/3E-D-2-M12-C	5/3 exhausted	electrical
540814	MDH-5/3E-D-2-M12D-C	5/3 exhausted	electrical
533017	MDH-5/3E-D-3-M12-C	5/3 exhausted	electrical
540821	MDH-5/3E-D-3-M12D-C	5/3 exhausted	electrical
14546	MDH-5/3G-3/4-D-4	5/3 closed	electrical
12459	MDH-5/3G-3/4-D-4-24DC	5/3 closed	electrical
525307	MDH-5/3G-D-1-M12-C	5/3 closed	electrical
540806	MDH-5/3G-D-1-M12D-C	5/3 closed	electrical
539078	MDH-5/3G-D-2-M12-C	5/3 closed	electrical
540815	MDH-5/3G-D-2-M12D-C	5/3 closed	electrical
539080	MDH-5/3G-D-3-M12-C	5/3 closed	electrical
540822	MDH-5/3G-D-3-M12D-C	5/3 closed	electrical
184507	MEBH-5/2-D-3-ZSR-C	5/2 monostable	electrical
184508	MEBH-5/2-D-3-ZSR-FR-C	5/2 monostable	electrical
184513	MEBH-5/3B-D-3-ZSR-C	5/3 pressurised	electrical
184511	MEBH-5/3E-D-3-ZSR-C	5/3 exhausted	electrical
184512	MEBH-5/3G-D-3-ZSR-C	5/3 closed	electrical

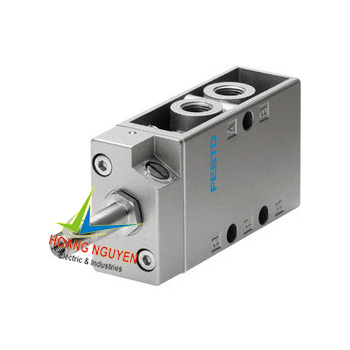

150981	MFH-5/2-D-1-C	5/2 monostable	electrical
535954	MFH-5/2-D-1-C-EX	5/2 monostable	electrical
151016	MFH-5/2-D-1-FR-C	5/2 monostable	electrical
535960	MFH-5/2-D-1-FR-C-EX	5/2 monostable	electrical
188510	MFH-5/2-D-1-FR-S-C	5/2 monostable	electrical
152562	MFH-5/2-D-1-S-C	5/2 monostable	electrical
535957	MFH-5/2-D-1-S-C-EX	5/2 monostable	electrical
151851	MFH-5/2-D-2-C	5/2 monostable	electrical
535955	MFH-5/2-D-2-C-EX	5/2 monostable	electrical
151709	MFH-5/2-D-2-FR-C	5/2 monostable	electrical
535961	MFH-5/2-D-2-FR-C-EX	5/2 monostable	electrical
151022	MFH-5/2-D-2-S-C	5/2 monostable	electrical
535958	MFH-5/2-D-2-S-C-EX	5/2 monostable	electrical
151870	MFH-5/2-D-3-C	5/2 monostable	electrical
535956	MFH-5/2-D-3-C-EX	5/2 monostable	electrical
151711	MFH-5/2-D-3-FR-C	5/2 monostable	electrical
535962	MFH-5/2-D-3-FR-C-EX	5/2 monostable	electrical
151032	MFH-5/2-D-3-S-C	5/2 monostable	electrical
535959	MFH-5/2-D-3-S-C-EX	5/2 monostable	electrical
150984	MFH-5/3B-D-1-C	5/3 pressurised	electrical
535981	MFH-5/3B-D-1-C-EX	5/3 pressurised	electrical
152566	MFH-5/3B-D-1-S-C	5/3 pressurised	electrical
535984	MFH-5/3B-D-1-S-C-EX	5/3 pressurised	electrical
151856	MFH-5/3B-D-2-C	5/3 pressurised	electrical
535982	MFH-5/3B-D-2-C-EX	5/3 pressurised	electrical
151026	MFH-5/3B-D-2-S-C	5/3 pressurised	electrical
535985	MFH-5/3B-D-2-S-C-EX	5/3 pressurised	electrical
151875	MFH-5/3B-D-3-C	5/3 pressurised	electrical
535983	MFH-5/3B-D-3-C-EX	5/3 pressurised	electrical
151036	MFH-5/3B-D-3-S-C	5/3 pressurised	electrical
535986	MFH-5/3B-D-3-S-C-EX	5/3 pressurised	electrical
150983	MFH-5/3E-D-1-C	5/3 exhausted	electrical
535975	MFH-5/3E-D-1-C-EX	5/3 exhausted	electrical
152565	MFH-5/3E-D-1-S-C	5/3 exhausted	electrical
535978	MFH-5/3E-D-1-S-C-EX	5/3 exhausted	electrical
151855	MFH-5/3E-D-2-C	5/3 exhausted	electrical
535976	MFH-5/3E-D-2-C-EX	5/3 exhausted	electrical
151025	MFH-5/3E-D-2-S-C	5/3 exhausted	electrical
535979	MFH-5/3E-D-2-S-C-EX	5/3 exhausted	electrical
151874	MFH-5/3E-D-3-C	5/3 exhausted	electrical
535977	MFH-5/3E-D-3-C-EX	5/3 exhausted	electrical
151035	MFH-5/3E-D-3-S-C	5/3 exhausted	electrical
535980	MFH-5/3E-D-3-S-C-EX	5/3 exhausted	electrical
150982	MFH-5/3G-D-1-C	5/3 closed	electrical
535969	MFH-5/3G-D-1-C-EX	5/3 closed	electrical
152564	MFH-5/3G-D-1-S-C	5/3 closed	electrical
535972	MFH-5/3G-D-1-S-C-EX	5/3 closed	electrical
151854	MFH-5/3G-D-2-C	5/3 closed	electrical
535970	MFH-5/3G-D-2-C-EX	5/3 closed	electrical
151024	MFH-5/3G-D-2-S-C	5/3 closed	electrical
535973	MFH-5/3G-D-2-S-C-EX	5/3 closed	electrical
151873	MFH-5/3G-D-3-C	5/3 closed	electrical
535971	MFH-5/3G-D-3-C-EX	5/3 closed	electrical
151034	MFH-5/3G-D-3-S-C	5/3 closed	electrical
535974	MFH-5/3G-D-3-S-C-EX	5/3 closed	electrical
159712	MN1H-5/2-D-3-C	5/2 monostable	electrical
159711	MN1H-5/2-D-3-FR-C	5/2 monostable	electrical
160896	MN1H-5/2-D-3-FR-S-C	5/2 monostable	electrical
159710	MN1H-5/2-D-3-S-C	5/2 monostable	electrical
159684	MN1H-5/3B-D-1-S-C	5/3 pressurised	electrical
159696	MN1H-5/3B-D-2-S-C	5/3 pressurised	electrical
159709	MN1H-5/3B-D-3-C	5/3 pressurised	electrical
159708	MN1H-5/3B-D-3-S-C	5/3 pressurised	electrical
159707	MN1H-5/3E-D-3-C	5/3 exhausted	electrical
159706	MN1H-5/3E-D-3-S-C	5/3 exhausted	electrical
159705	MN1H-5/3G-D-3-C	5/3 closed	electrical
159704	MN1H-5/3G-D-3-S-C	5/3 closed	electrical
12461	VL-5/2-3/4-D-4	5/2 monostable	pneumatic
151009	VL-5/2-D-1-C	5/2 monostable	pneumatic
536007	VL-5/2-D-1-C-EX	5/2 monostable	pneumatic
151014	VL-5/2-D-1-FR-C	5/2 monostable	pneumatic
536010	VL-5/2-D-1-FR-C-EX	5/2 monostable	pneumatic
151845	VL-5/2-D-2-C	5/2 monostable	pneumatic
536008	VL-5/2-D-2-C-EX	5/2 monostable	pneumatic
151844	VL-5/2-D-2-FR-C	5/2 monostable	pneumatic
536011	VL-5/2-D-2-FR-C-EX	5/2 monostable	pneumatic
151864	VL-5/2-D-3-C	5/2 monostable	pneumatic
536009	VL-5/2-D-3-C-EX	5/2 monostable	pneumatic
151863	VL-5/2-D-3-FR-C	5/2 monostable	pneumatic
536012	VL-5/2-D-3-FR-C-EX	5/2 monostable	pneumatic
151012	VL-5/3B-D-1-C	5/3 pressurised	pneumatic
536025	VL-5/3B-D-1-C-EX	5/3 pressurised	pneumatic
151850	VL-5/3B-D-2-C	5/3 pressurised	pneumatic
536026	VL-5/3B-D-2-C-EX	5/3 pressurised	pneumatic
151869	VL-5/3B-D-3-C	5/3 pressurised	pneumatic
536027	VL-5/3B-D-3-C-EX	5/3 pressurised	pneumatic
12464	VL-5/3E-3/4-D-4	5/3 exhausted	pneumatic
151011	VL-5/3E-D-1-C	5/3 exhausted	pneumatic
536022	VL-5/3E-D-1-C-EX	5/3 exhausted	pneumatic
151849	VL-5/3E-D-2-C	5/3 exhausted	pneumatic
536023	VL-5/3E-D-2-C-EX	5/3 exhausted	pneumatic
151868	VL-5/3E-D-3-C	5/3 exhausted	pneumatic
536024	VL-5/3E-D-3-C-EX	5/3 exhausted	pneumatic
12463	VL-5/3G-3/4-D-4	5/3 closed	pneumatic
151010	VL-5/3G-D-1-C	5/3 closed	pneumatic
536019	VL-5/3G-D-1-C-EX	5/3 closed	pneumatic
151848	VL-5/3G-D-2-C	5/3 closed	pneumatic
536020	VL-5/3G-D-2-C-EX	5/3 closed	pneumatic
151867	VL-5/3G-D-3-C	5/3 closed	pneumatic
536021	VL-5/3G-D-3-C-EX	5/3 closed	pneumatic

2. CHI TIẾT LIÊN HỆ MUA HÀNG

Lại Ngọc Duy

0903.009.464
------------------
Công Ty TNHH TMDV HOÀNG NGUYÊN

19/4 Ấp Thanh Hóa, Hố Nai 3, Huyện Trảng Bom, ĐN

Tel : 0618.971.790 - Fax : 0618.971.791

Email : ctyhne@gmail.com

Sản phẩm cùng loại

Van điện từ Festo MFH-5-1/4-S (10349)

Model: MFH-5-1/4-S (10349)

Van điện từ Festo JMFH-5-1/2-S (35548)

Model: JMFH-5-1/2-S (35548)

Van điện từ Festo 7876 MOFH-3-¼

Model: 7876 MOFH-3-¼

Van điện từ Festo 9857 MFH-3-½

Model: 9857 MFH-3-½

Van điện từ Festo JMFH-5-1/2 (10166)

Model: JMFH-5-1/2 (10166)

Van điện từ Festo MFH-5-1/8-S (10348)

Model: MFH-5-1/8-S (10348)

Van điện từ Festo 7958 MFH-3-1/8-S

Model: 7958 MFH-3-1/8-S

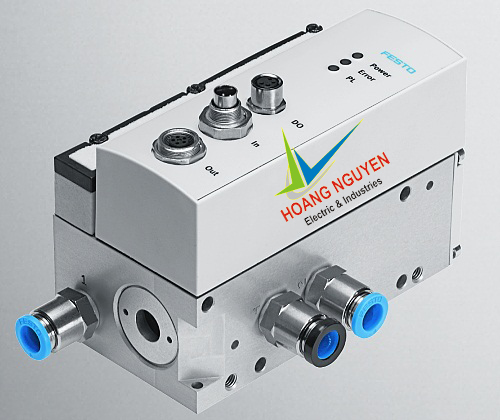

Festo Cassette Valve

Model: C CJ CJM CL CM

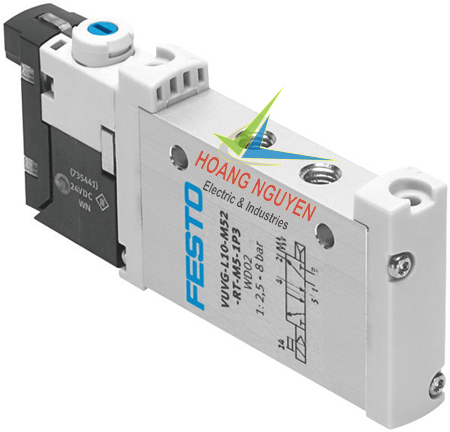

Festo Valves VUVG

Model: VUVG

Festo Valves CPASC1, CPPSC1

Model: CPASC1, CPPSC1

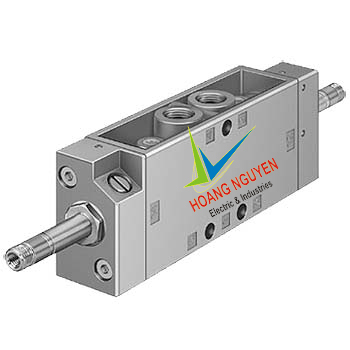

Van điện từ Festo JMFDH-5-1/8 (8821)

Model: JMFDH-5-1/8 (8821)

Van điện từ Festo MFH-3-1/8 (7802)

Model: MFH-3-1/8 (7802)

Standard valves VSPA

Model: VSPA

Van điện từ Festo 11968 MFH-3-¾-S

Model: 11968 MFH-3-¾-S

Standard Namur valves (VDE/VDI 3845)

Model: MFH MFXMH MGTBH MN1H NVF3 VSNB

Van điện từ Festo 11967 MFH-3-¾

Model: 11967 MFH-3-¾

Festo Valves VMPA

Model: Festo Valves VMPA

Van cho ứng dụng đặc biệt

Model: CDVI5.0 J JD JMFH MFH MHA1 MHA2 MHA3 MHA4 MHE2 MHE3 MHE4 MHJ10 MHJ9 MHP1 MHP2 MHP3 MHP4 MLC MUFH VD

Van điện từ Festo JMFH-5-1/8-S (14008)

Model: JMFH-5-1/8-S (14008)

Van điện từ Festo MFH-5-1/4 (6211)

Model: MFH-5-1/4 (6211)

Van điện từ Festo MFH-3-¼ (9964)

Model: Festo MFH-3-¼ (9964)

Van điện từ Festo JMFH-5-1/8 (8820)

Model: JMFH-5-1/8 (8820)

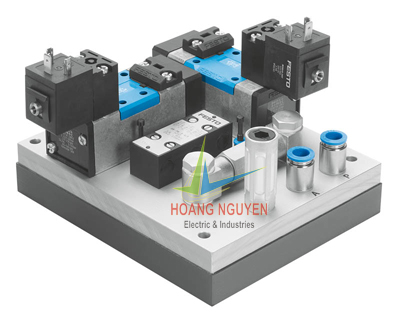

Solenoid valves supplementary product line MCH, MFH

Model: BMCH BMFH JMC JMF MC MCH MF MFH MLC MOCH MOFH

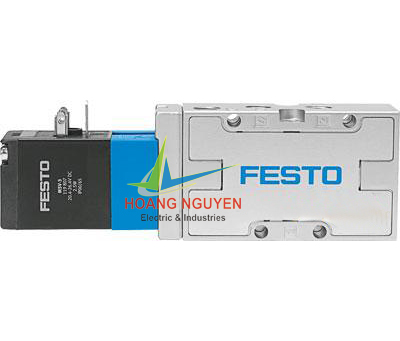

Standard valve VSVA with square plugs

Model: VSVA

Thương hiệu

Facebook

Hoàng Nguyên - Thiết Bị Điện Công Nghiệp

Hỗ trợ trực tuyến

Tư vấn mua hàng
Ms Huệ
0937 342 346

http://mystatus.skype.com/smallclassic/leaderpr

Hỗ trợ kỹ thuật 24/24
Mr Duy
0903 009 464

http://mystatus.skype.com/smallclassic/ctyhne

Thống kê

Online: 43
Trong ngày: 6014
Trong tuần: 22977
Trong tháng: 23402
Tổng: 28572112

Công Ty TNHH Thuơng Mại Dịch Vụ Xây Dựng Cơ Điện HOÀNG NGUYÊN
Địa chỉ : 397/5 Tây Lạc, An Chu, Xã Bắc Sơn, Huyện Trảng Bom, Tỉnh Đồng Nai
Showroom : 2440 QL 1, Ấp thanh hóa, Hố Nai 3, Huyện Trảng Bom, Tỉnh Đồng Nai
Website: www.kythuathoangnguyen.com, www.hoangnguyencons.com
Copyright © 2013 HoangNguyencons. All Rights Reserved.

Thông tin sản phẩm

Sản phẩm cùng loại

Thông tin

Sản phẩm

Tài liệu

Chia sẻ
